| Model Number | SFL1-20 | SFL1-30 | SFL1-50 | SFL1-75 |

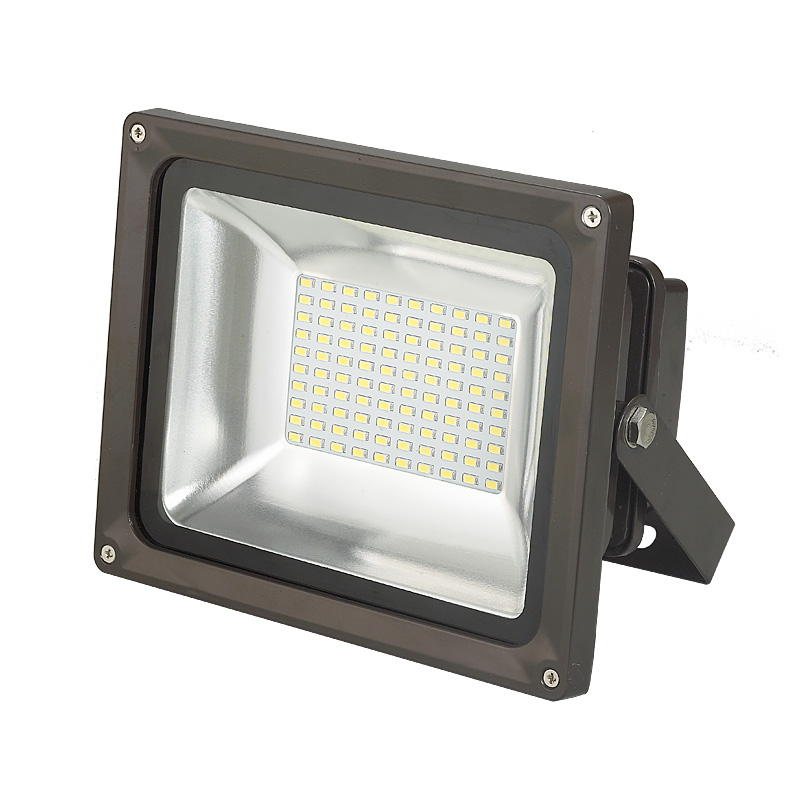

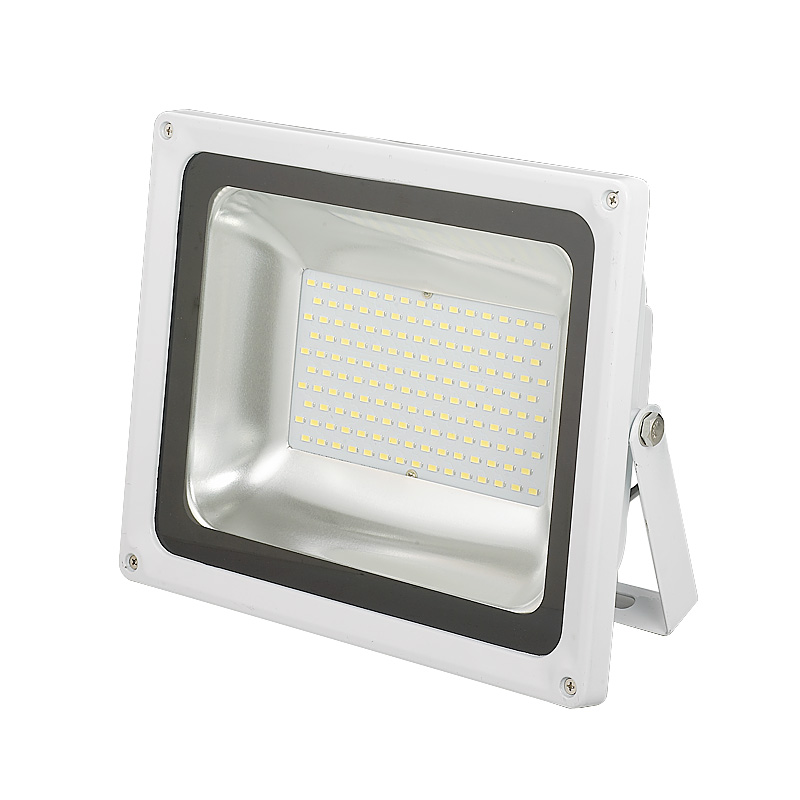

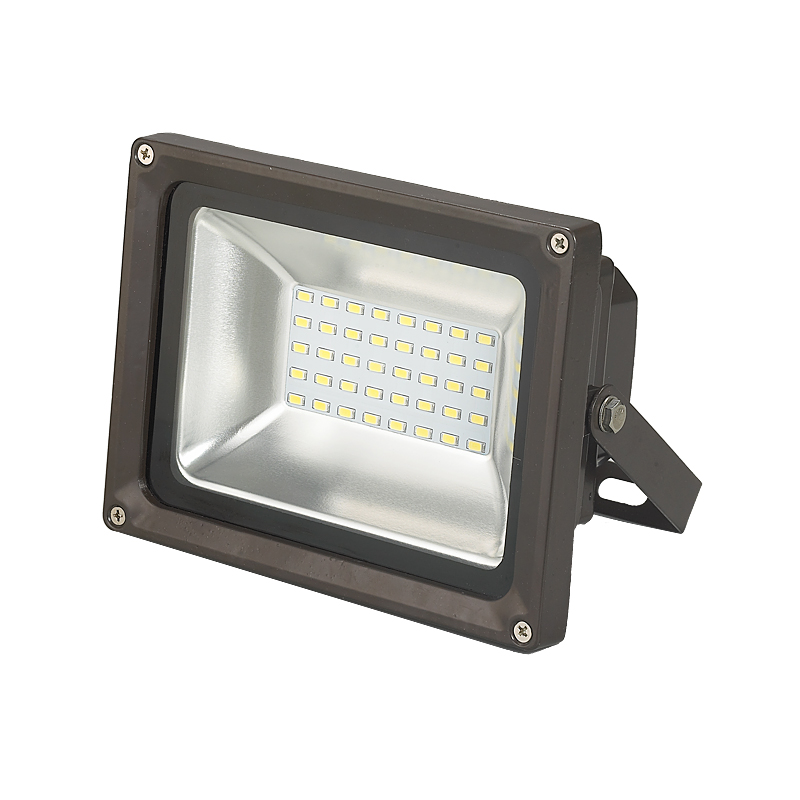

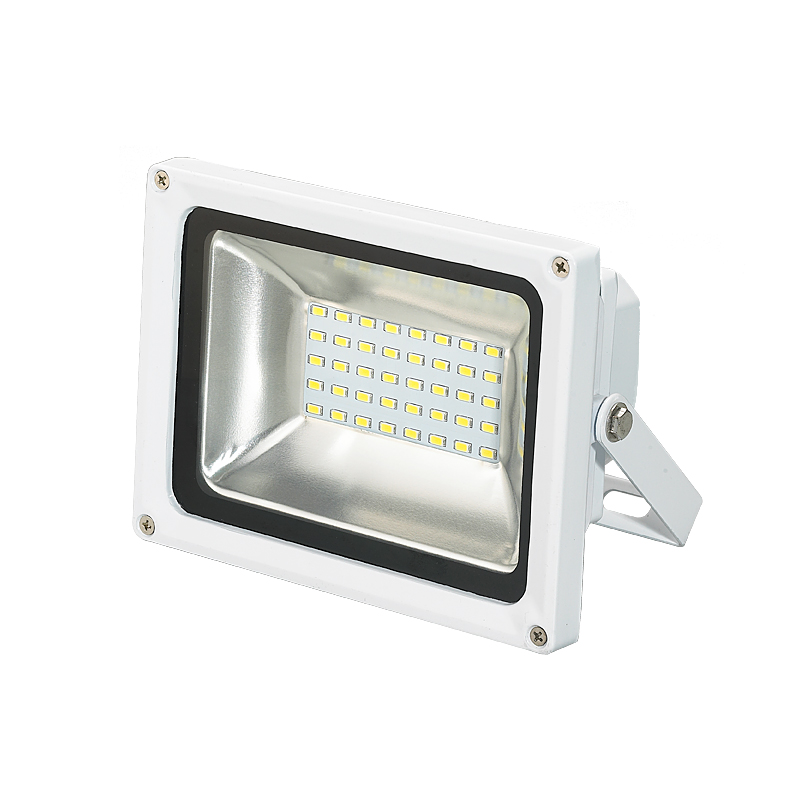

| Picture |
|
|
|
|
| Performance |
|
|||
| Data Sheet | download | download | download | download |
| Input Wattage | 20W | 30W | 50W | 75W |
| Input Voltage Range (V) | 100-277 | 100-277 | 100-277 | 100-277 |
| Delivered Lumens (lm) | 1800 lm | 2700 lm | 4500 lm | 6750 lm |
| Efficacy (lm/W) | 90 lm/W | 90 lm/W | 90 lm/W | 90 lm/W |
| Color Rendering Index (CRI) | 72 | 72 | 72 | 72 |
| Color Temperature (CCT) | 3000K/4000K/5000K/5700K | |||
| Equivalent Wattage |
|
|
|
|
| Power Factor | >0.95 | >0.95 | >0.95 | >0.95 |
| MAX THD (%) | 15 | 15 | 15 | 15 |
| Min. Ambient Temp (°C) | -40 | -40 | -40 | -40 |
| Max. Ambient Temp (°C) | 50 | 50 | 50 | 50 |
| Dimming Control |
|
|
|
|
| Dimming compatible | N/A | N/A | N/A | N/A |
| 0-10V Dimming | N/A | N/A | N/A | N/A |
| Dimensions |
|
|
|
|
| Product Depth (mm) | 110 | 110 | 125 | 140 |
| Product Length (mm) | 180 | 180 | 225 | 285 |
| Product Width (mm) | 140 | 140 | 185 | 235 |
| Longevity |
|
|
|
|
| Life time (Hours) | >50000 | >50000 | >50000 | >50000 |
| Warranty (Years) | 5 years | 5 years | 5 years | 5 years |
| Validations and Downloads |
|
|
|
|
| LM-79 | download | download | download | download |
| ULus/cUL | download | download | download | download |
| .ies | download | download | download | download |
| Owner Manual | download | download | download | download |
| Qualifications |
|
|
|
|
| DesignLights Consortium® | Y | Y | Y | Y |
| FCC | download | download | download | download |
| LED Lighting Facts® | Y | Y | Y | Y |
