| Model Number | UFO-2-100 | UFO-2-150 | UFO-2-200 |
| Photo |
 |
|
|
| Wattage | 100W | 150W | 200W |
| Lumens (lm) | 11000 lm | 16000 lm | 20100 lm |
|
Efficacy (lm/W) |
>100 lm/w | >100 lm/w | >100 lm/w |
|
Color Rendering Index (CRI) |
80 | 80 | 80 |
|
Input Voltage (V) |
200-240V | 200-240V | 200-240VSPDSPD |
| SPD | 4KV |
4KV |
4KV |
| Power Factor |
>0.98 |
>0.98 |
>0.98 |
|
Color Temperature (CCT) |
4000K/5000K/6500K | ||
| MAX THD (%) | 15% | 15% | 15% |
| Min. Ambient Temp (°C) | -40 | -40 | -40 |
| Max. Ambient Temp (°C) | 50 | 50 | 50 |
| Dimensions |
|
|
|
| Diameter (mm) | 250 mm | 295mm | 340mm |
| Height (mm) | 60 mm | 65 mm | 70 mm |
| Mounting |
|
|
|
| U-Shape Bracket | Yes | Yes | Yes |
| Chain and Lock | Yes | Yes | Yes |
| Protection Ratio |
IP65 |
IP65 |
IP65 |
| Lifetime | >35000 hrs | >35000 hrs | >35000 hrs |
| Certification | SAA,CE | SAA,CE | SAA,CE |

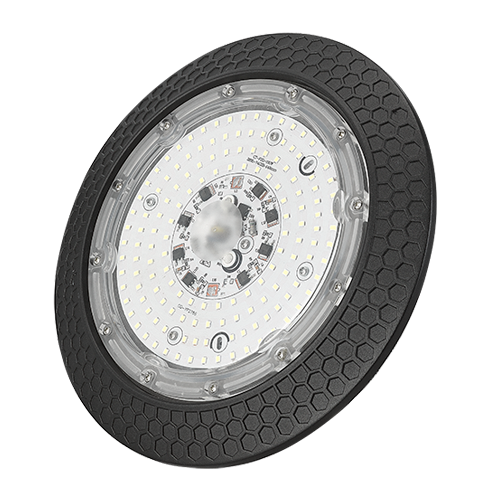

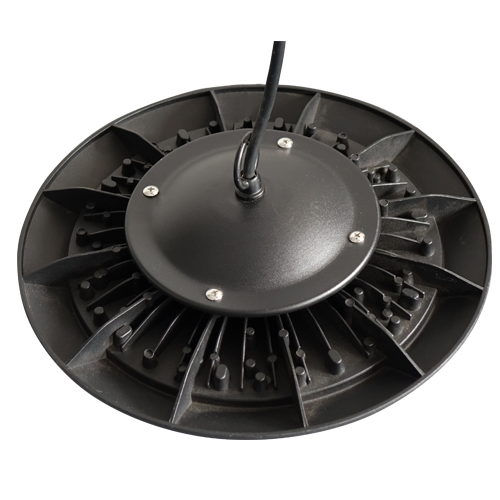

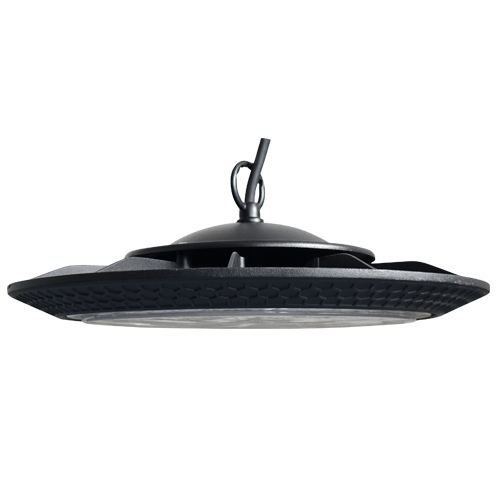

UFO-2 series high bay is CEA 2nd generation UFO high bay, compared with 1st generation, this series enhanced efficiency up to 110 lm/w , upgrade surge protection to 4KV, quality meet IEC standard, pass 1500V insulation voltage test(satisfy IEC 60598-1:2008 Luminare - Part 1: General requirements and tests), pass EMC,THD(satisfy EN 55015: 2013+A1:2015 EN 61000-3-2: 2014, EN 61000-3-3:2013 EN 61547: 2009), IRF<5%, IP65 protection.UFO-2 high bay is designed multiple mounting, hang rope and U-shape bracket optional. Certification include SAA,CE,CB.
