| Model | LSL8-50 | LSL8-100 | LSL8-150 |

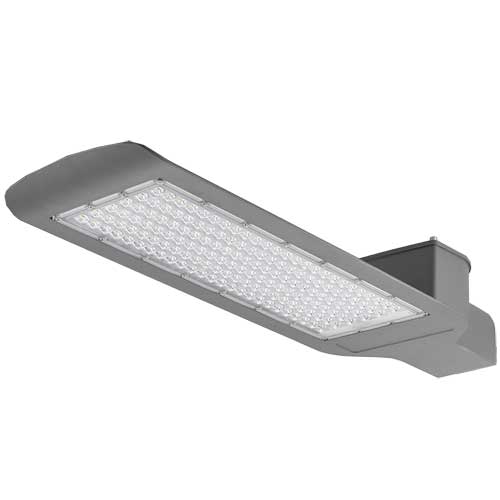

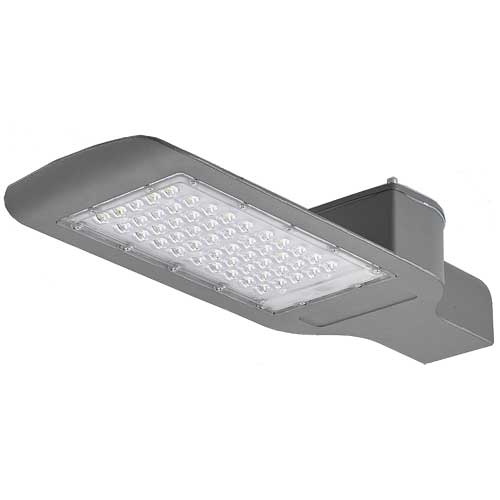

| Picture |
|
|
|
| Data Sheet | download | download | download |
| Input Power | 50W | 100W | 150W |
| Input Voltage (V) | AC85-265V | AC85-265V | AC85-265V |
| Luminous Flux (lm) | 5300 lm | 11000 lm | 15400 lm |
| Luminous Efficiency (lm/W) | 100 lm/W | 100 lm/W | 100 lm/W |
| Color Rendering Index(CRI) | 72 | 72 | 72 |
| SPD(kV) | 4 | 4 | 4 |
| Color Temperature(CCT) |
2700K-6500K |
||
| Appliance | Y | Y | Y |
| Equivalent Power | 150W HG | 250W HG | 400W HG |
| Power Factor | >0.90 | >0.90 | >0.90 |
| MAX THD (%) | <15 | <15 | <15 |
| Min Ambient Temperature (°C) | -40 | -40 | -40 |
| Max Ambient Temperature (°C) | 50 | 50 | 50 |
| Lighting Compatibility | N/A | N/A | N/A |
| 0-10V Dim | N/A | N/A | N/A |
| External Dimension | |||
| Weight (kgs.) | 1.2 | 1.5 | 2.2 |
| Depth(mm) | 55 | 55 | 70 |
| Length(mm) | 400 | 470 | 585 |
| Width (mm) | 155 | 165 | 180 |
| Installation Hole(Dia) | 50 mm | 60 mm | 60 mm |
| Time(Hours) | >50000 | >50000 | >50000 |
| Warranty (Years) | 2 years | 2 years | 2 years |
